HQ-006 series electric actuator

This is a new kind of product which is advanced from several of insufficient of electric actuator. Among them, a lot of key parts are imported from Germany or Japan with compact structure, reliable quality, and superior performance.

♦ Features
1、Shell- use advance aluminum alloy, light quantity, and treat with anodized finish inside and outside, polyester powder coated on surface and high corrosion resistance.
2、Motor- use SPG squirrel cage type motor, big output torque, and internal set heat protection button to control the temperature to avoid the damage of motor.
3、Manual structure- when open circuit, pull clutch handle can go on manual operation. When being electrified, the clutch resets automatically.
4、Position director- director is mounted on the center bearing to observe the position of valve. And with selection of directing light (SLU)
5、Dryer- used for control the temperature to avoid the water coagulation of inner the actuator and maintain the inner electro-pneumatic piece's dry.
6、Limit button - controlled by cam organ to set position precisely and conveniently with simple adjustment organ.
7、Torque button (except HQ-008) - can offer over-load protection to avoid the motor to be damaged. (pls don't change the mounting arbitrary).
8、Self-lock-self-lock function, avoid reversing, with steady and reliable acting part.
9、Mounting- bottom mounting according to ISO5211, derive bearing can be pulled out and machining as require, great flexibility. Fit for vertical or horizontal mounting.
10、Link end - compact and reasonable circuit setting, the diameter of wiring end is 2.5mm, high pressure, firm linkage.
11、Wormgear- adopt cam design, large connecting surface with worm rod, big output torque, balance and anti-abrasion, long service life.
12、PCU board- compact and reasonable structure, set PCU board in the casing.

♦ Performance

♦ Technical data

♦ Optional data

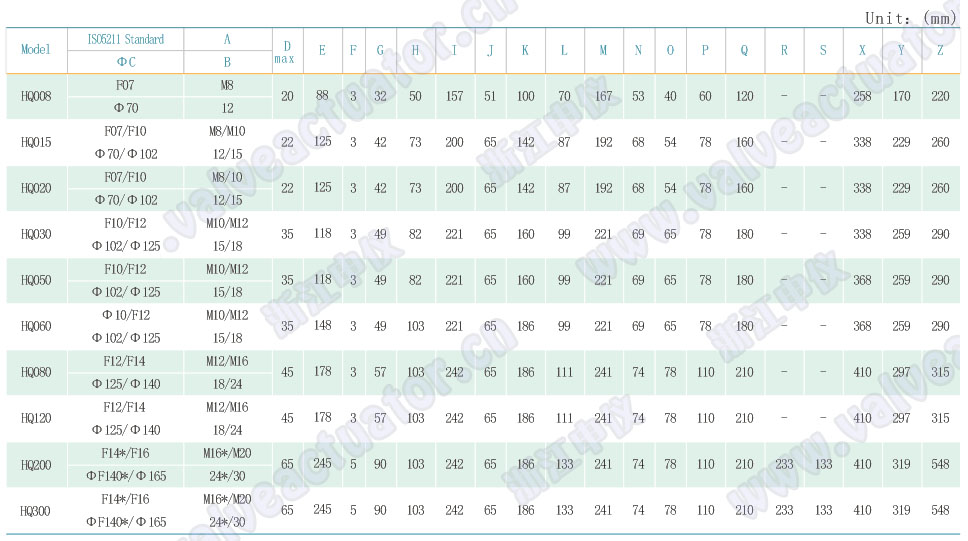

♦ Dimensions
