Large Spec series

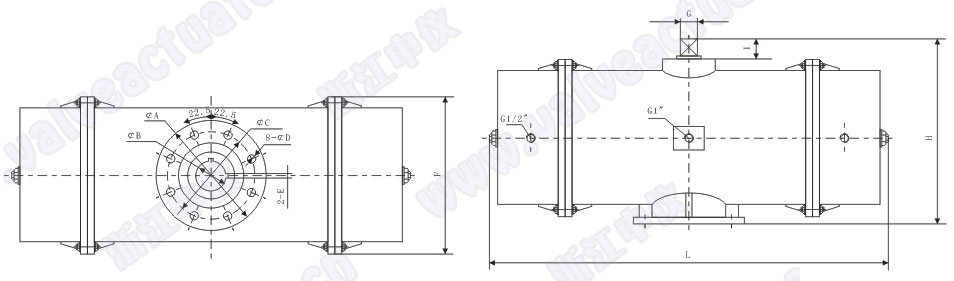

Messages If you want any further detail data and drawing,please contact us.Tel:86-577-67968697 Fax:86-577-67968699
Large Specification Actuator provides an output torque up to 43000 Nm at 5 Bar supply air. This kind actuators are extensive used in the area of petroleum, chemical industry, natural gas and water conservancy project. The major models of Large Specification Actuator are DA(SR)-350,DA(SR)-400,DA(SR)-500 and DA(SR)-600. The body, pistons and pinion were made of high quality carbon steel insuring the high quality of actuator.

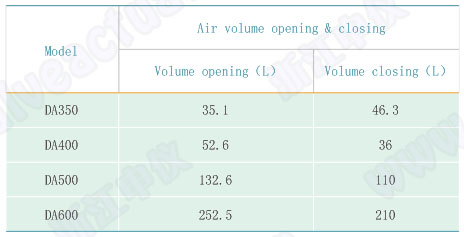

Air consumption
Air consumption rest with Air supply.Air volume and Action cycle times,expressions;
L/Min=Air volume(Air volume Opening+Air volume closing)×[(Air Supply(Kpa)+101.3)÷101.3]×Action cycle times/min
